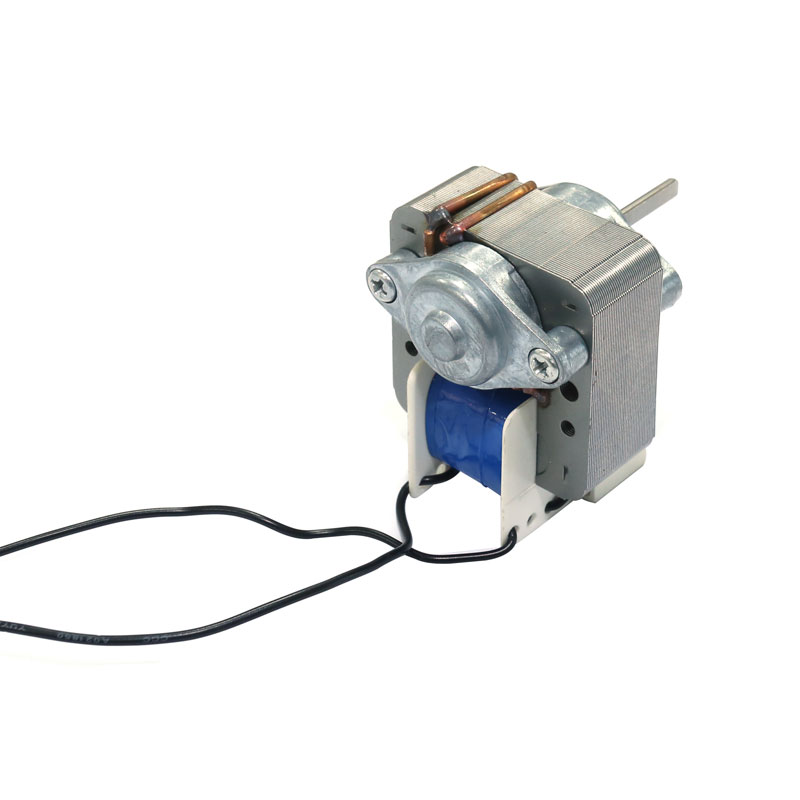

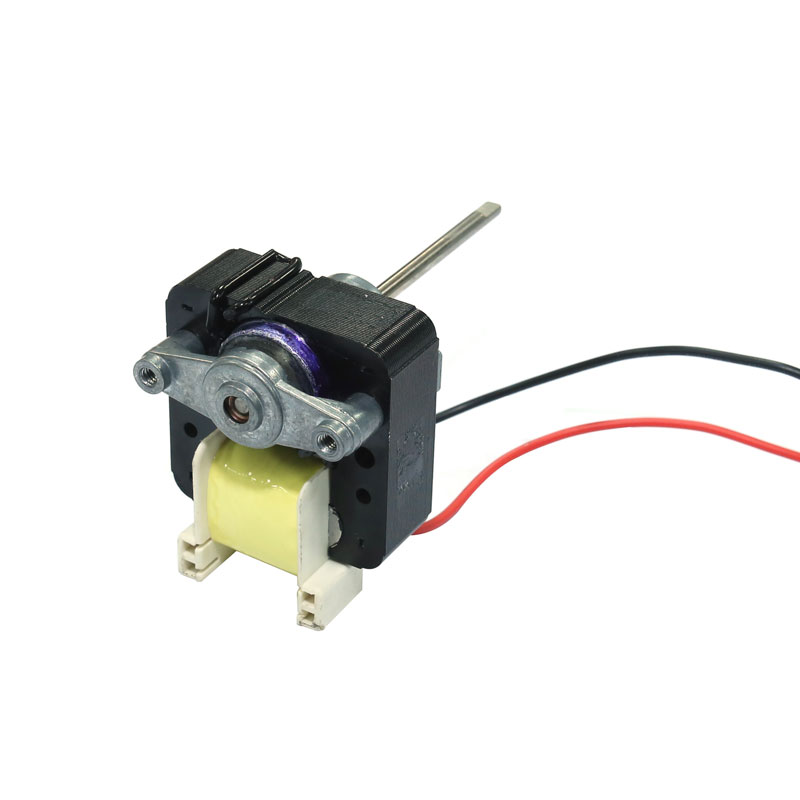

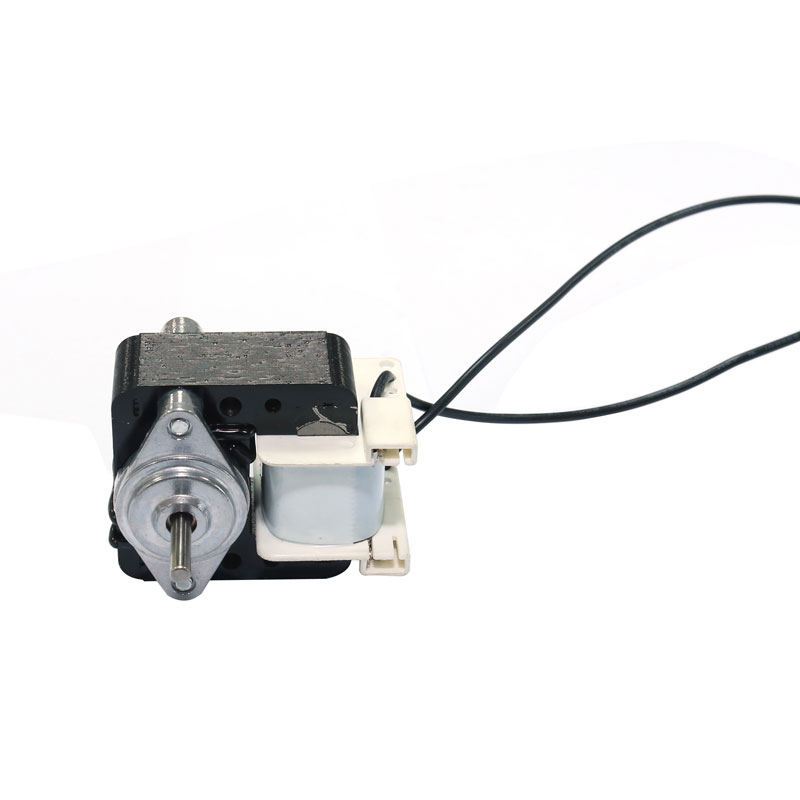

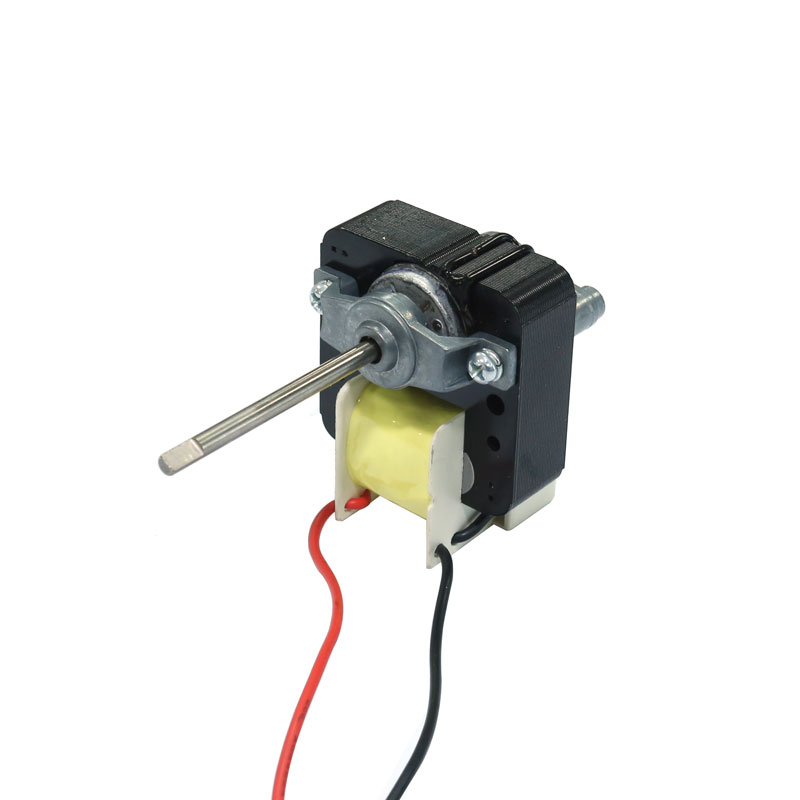

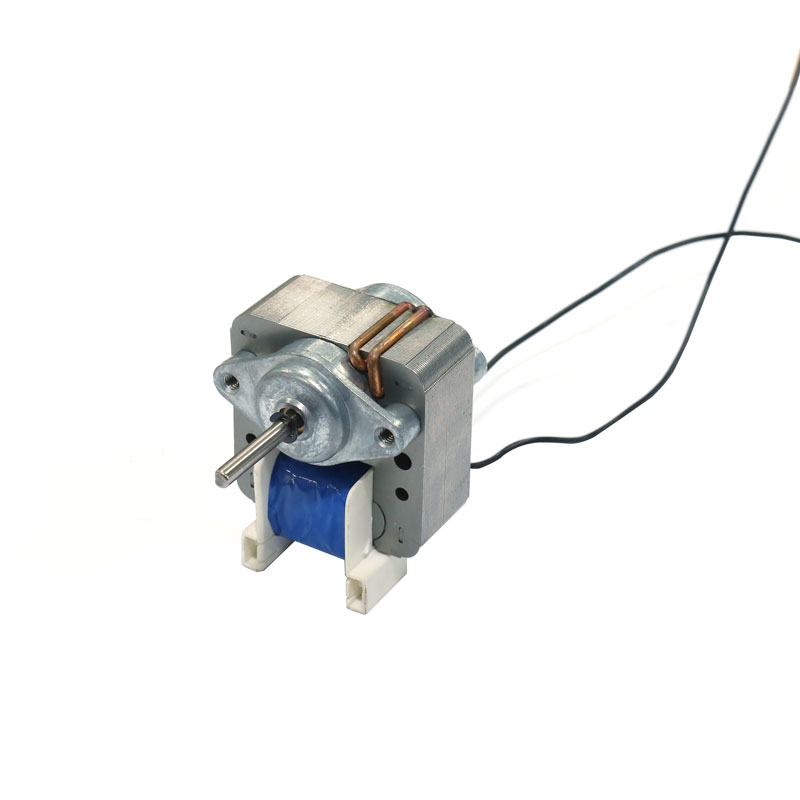

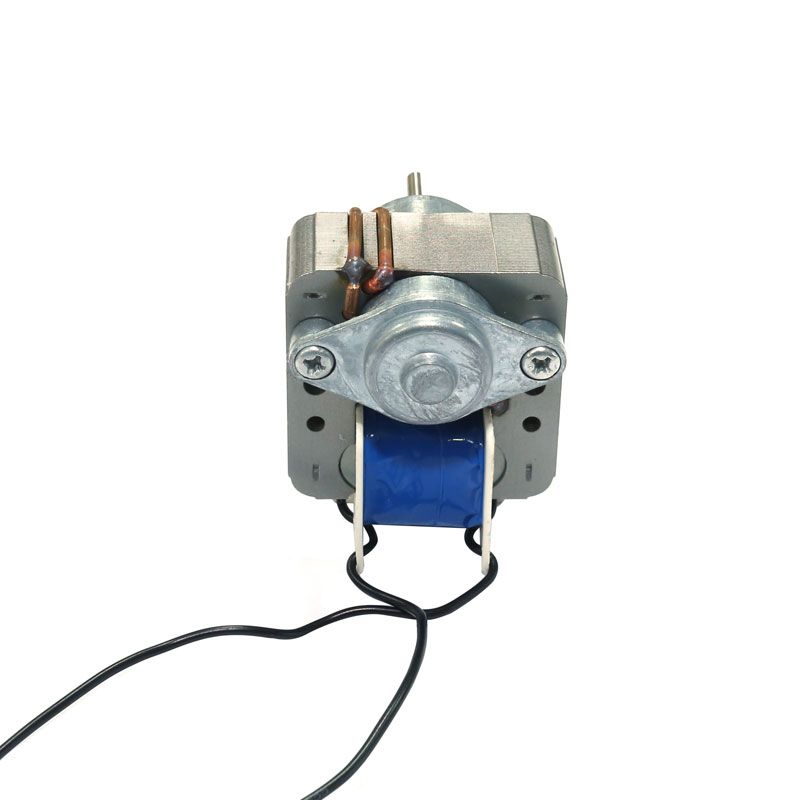

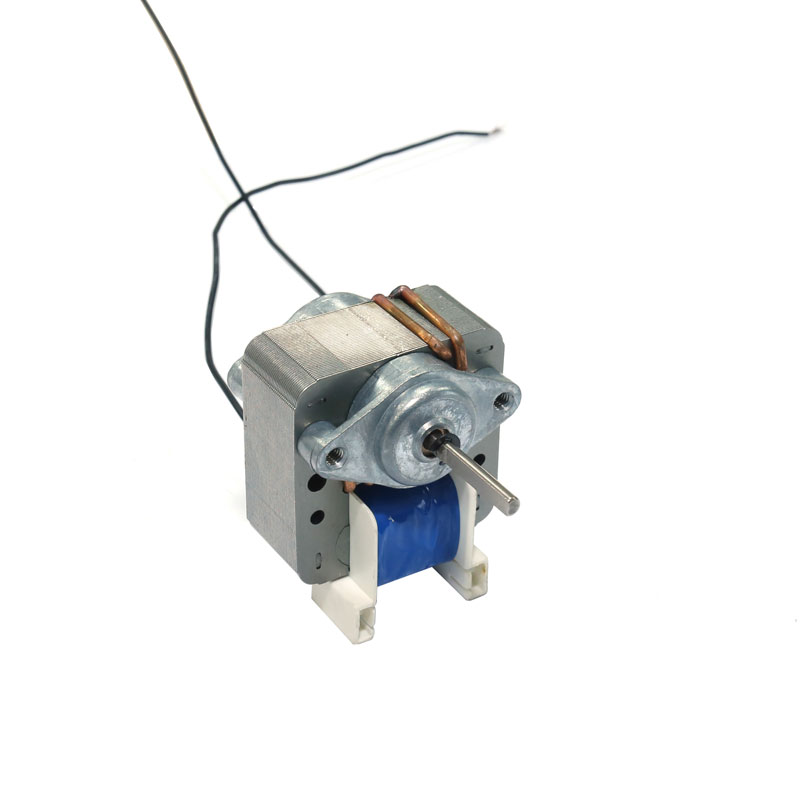

YJF48 Shaded pole motor
1. This series of motors have the advantages of safety and reliability, low noise, hard performance, good starting performance and long service life;
- Product Description
Main technical parameters of YJ48 series：
|
Project model |
Voltage |
Frequency |
Insulation Grade |
Size |
No load performance |
Load performance |
|||||||
|
Stacked thickness |
Input Electric Current |
Input Power |
Speed |
Input Electric current |
Input Power |
Power Factor |
Speed |
Output Power |
Rated Torque |
||||
|
V |
Hz |
|
mm |
A |
W |
r/min |
A |
W |
|
r/min |
W |
g.cm |
|
|
YJ48-8 |
220/240 |
50 |
E |
8 |
0.05 |
5 |
2600 |
0.07 |
6 |
0.42 |
2200 |
0.4 |
15 |
|
YJ48-8 |
110/120 |
60 |
E |
8 |
0.08 |
4 |
3300 |
0.10 |
5.5 |
0.48 |
2200 |
0.5 |
15 |
|
YJ48-10 |
220/240 |
50 |
E |
10 |
0.06 |
5 |
2600 |
0.075 |
7 |
0.46 |
2300 |
0.48 |
20 |
|
YJ48-10 |
110/120 |
60 |
E |
10 |
0.1 |
4 |
3300 |
0.11 |
6.5 |
0.5 |
2300 |
0.55 |
20 |
|
YJ48-12 |
220/240 |
50 |
E |
12 |
0.085 |
9 |
2650 |
0.09 |
11 |
0.48 |
2300 |
0.72 |
30 |
|
YJ48-12 |
110/120 |
60 |
E |
12 |
0.11 |
7 |
3350 |
0.125 |
8.5 |
0.55 |
2400 |
0.78 |
30 |
|
YJ48-16 |
220/240 |
50 |
E |
16 |
0.11 |
12 |
2700 |
0.135 |
15 |
0.51 |
2400 |
1.45 |
60 |
|
YJ48-16 |
110/120 |
60 |
E |
16 |
0.135 |
12.5 |
3400 |
0.16 |
16 |
0.55 |
2500 |
1.55 |
60 |
|
YJ48-20 |
220/240 |
50 |
E |
20 |
0.145 |
12.5 |
2800 |
0.155 |
16 |
0.56 |
2400 |
2.0 |
80 |
|
YJ48-20 |
110/120 |
60 |
E |
20 |
0.16 |
13 |
3400 |
0.19 |
19 |
0.6 |
2500 |
2.1 |
80 |
Scope of application: YJ48 series motors are widely used in air heaters, ventilators, air purifiers, humidifiers and small fans.
Product Description:
1. This series of motors have the advantages of safety and reliability, low noise, hard performance, good starting performance and long service life;
2. This series of motors are widely used in humidifier, heater, electric oven, fireplace and other household appliances;
3. The insulation grade of this series of motors can be designed as e, B, F and H according to the user's requirements;
4. The rotation direction and size of motor "h, L1, L2" can be produced according to the user's requirements.
